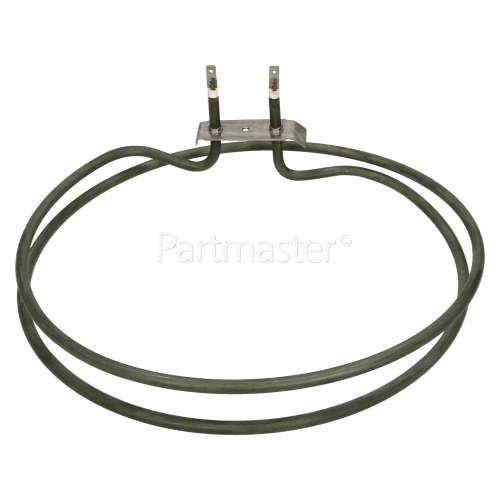

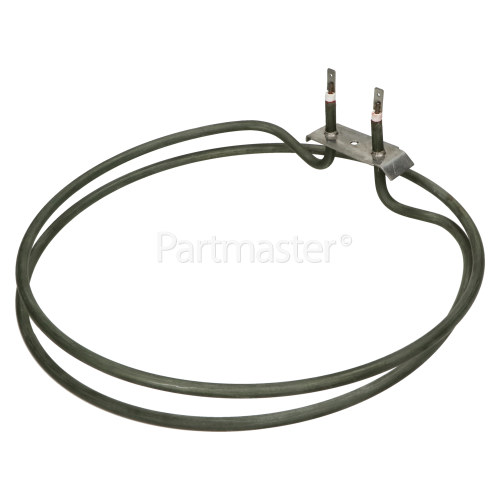

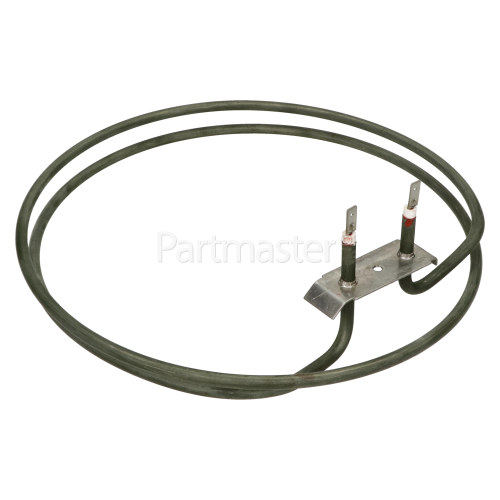

Fan Oven Element 2500W

Alternative Manufacturer

Fan Oven Element 2500W

Fan Oven Element 2500W


Alternative Manufacturer

Stock No: 1787956PM

  • Product Description

    Make sure your cooker or oven is heating up correctly by replacing the fan oven element if it no longer functions as it should.

    The fan oven element is responsible for heating the oven cavity in order to cook the food. In an electric cooker when the cooker is turned on, electricity flows to the element which causes it to heat up. Once the element reaches the desired temperature then the electricity flow switches on and off to maintain the temperature. This process is controlled by the thermostat.

    Oven elements fail when the internal element filament burns out, this can cause the element to short circuit. There may be visible signs the element has blown such as a split, bulge, or blow hole on the element. Other signs of a failed element include; the oven not heating up, the oven blowing out cold air or bright spots during use.

    The causes of element failure

    There are a number of factors that can cause an oven element to blow. Damage due to the expansion and contraction of the element coils caused by the element constantly heating up and cooling down is a very common cause. While other causes of element failure can include overheating as a result of a failed thermostat or in some cases a build-up of grease causing the fan motor to run slowly.

    Please check model fit list to ensure this part is correct for your model.


    • Also Known As: Circular Element, Round Element
    • 2 Turn
    • 2500 watts
    • Height: 235 (mm)
    • Width 255 mm
    • Bracket : 70 mm
    • Tags: 38 mm
    • End to Centre Bracket 220MM
    • Manufacturers’ names and numbers are used for reference purposes only. These parts are in no way associated with the initial manufacturers parts
    • Fan Oven Element 2500W

      Original Quality Component

      2500 watts 240 volts Outer Diameter: 251 mm Length 216 mm Bracket: 68 mm Tags: 38 mm Replace your faulty oven element with this 2500 Watt element.... More information
